FDMC7692S-F127

Part NumberFDMC7692S-F127

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V

DatasheetFDMC7692S

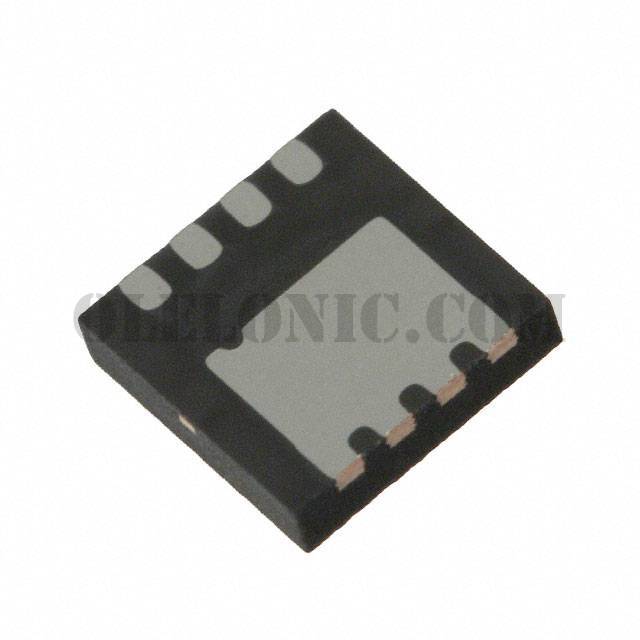

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 12.5A (Ta), 18A (Tc) 2.3W (Ta), 27W (Tc) Surface Mount 8-MLP (3.3x3.3)

To learn about the specification of FDMC7692S-F127, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC7692S-F127 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC7692S-F127.
We are offering FDMC7692S-F127 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC7692S-F127 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

FDMC7692S

Standard Package

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

12.5A (Ta), 18A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

9.3mOhm @ 12.5A, 10V

Vgs(th) (Max) @ Id

3V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

23nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1385pF @ 15V

FET Feature

Power Dissipation (Max)

2.3W (Ta), 27W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-MLP (3.3x3.3)

Package / Case

8-PowerWDFN
