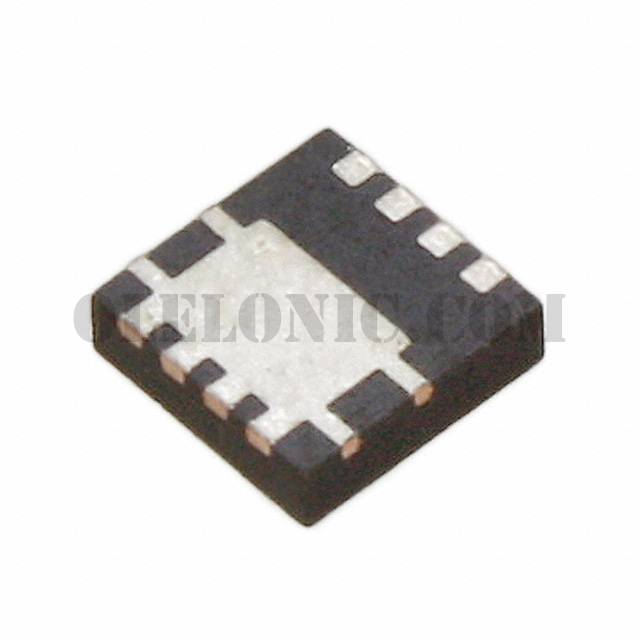

FDMC7660DC

FDMC7660DC

Part NumberFDMC7660DC

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 40A POWER33

DatasheetFDMC7660DC

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 30A (Ta), 40A (Tc) 3W (Ta), 78W (Tc) Surface Mount Dual Cool ™ 33

To learn about the specification of FDMC7660DC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC7660DC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC7660DC.
We are offering FDMC7660DC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC7660DC - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC7660DC
Standard Package	1
Manufacturer	ON Semiconductor
Series	Dual Cool™, PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	30A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.2mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	76nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5170pF @ 15V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 78W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Dual Cool ™ 33
Package / Case	8-PowerTDFN
