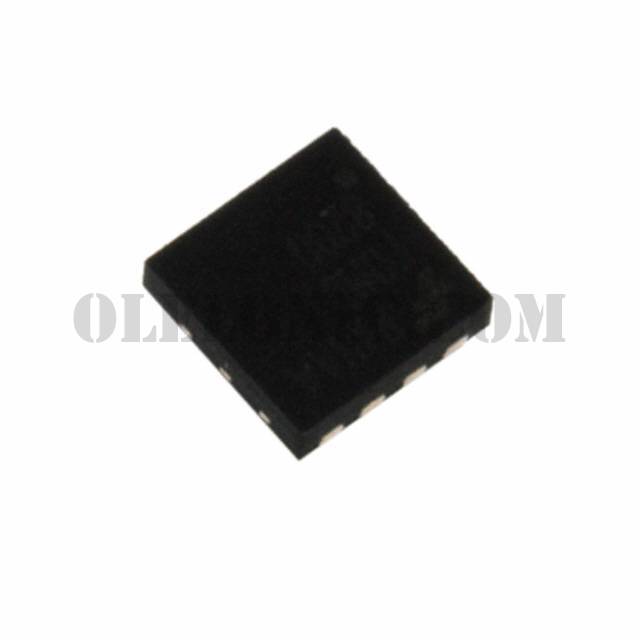

FDMC7200S

FDMC7200S

Part NumberFDMC7200S

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V 7A/13A POWER33

DatasheetFDMC7200S

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 7A, 13A 700mW, 1W Surface Mount 8-Power33 (3x3)

To learn about the specification of FDMC7200S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC7200S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC7200S.
We are offering FDMC7200S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC7200S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMC7200S
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	7A, 13A
Rds On (Max) @ Id, Vgs	22mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	660pF @ 15V
Power - Max	700mW, 1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-Power33 (3x3)
