FDMC010N08C

FDMC010N08C

Part NumberFDMC010N08C

ManufacturerON Semiconductor

DescriptionPTNG 80/20V IN 3X3CLIP

DatasheetFDMC010N08C

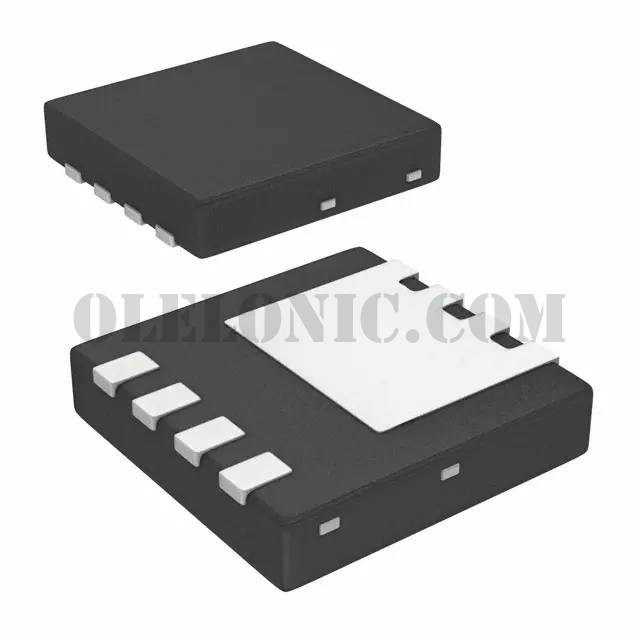

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 11A (Ta), 51A (Tc) 2.4W (Ta), 52W (Tc) Surface Mount Power33

To learn about the specification of FDMC010N08C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC010N08C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC010N08C.
We are offering FDMC010N08C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC010N08C - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC010N08C
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	11A (Ta), 51A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	10mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	4V @ 90µA
Gate Charge (Qg) (Max) @ Vgs	22nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1500pF @ 40V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 52W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power33
Package / Case	8-PowerWDFN
