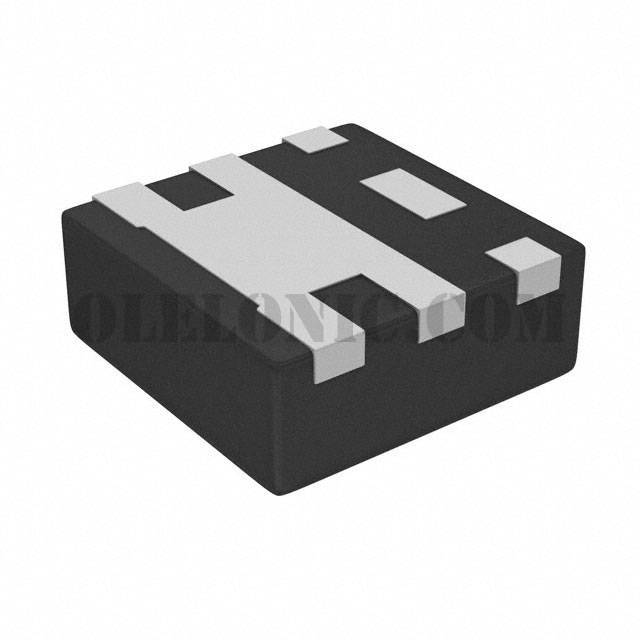

FDMA6676PZ

Part NumberFDMA6676PZ

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 30V 11A

DatasheetFDMA6676PZ

Package / Case6-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 11A (Ta) 2.4W (Ta) Surface Mount 6-MicroFET (2x2)

To learn about the specification of FDMA6676PZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMA6676PZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMA6676PZ.
We are offering FDMA6676PZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMA6676PZ - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

FDMA6676PZ

Standard Package

Manufacturer

ON Semiconductor

Series

PowerTrench®

Packaging

Cut Tape (CT)

Part Status

Active

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

11A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

13.5mOhm @ 11A, 10V

Vgs(th) (Max) @ Id

2.6V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

46nC @ 10V

Vgs (Max)

±25V

Input Capacitance (Ciss) (Max) @ Vds

2160pF @ 15V

FET Feature

Power Dissipation (Max)

2.4W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

6-MicroFET (2x2)

Package / Case

6-PowerWDFN
