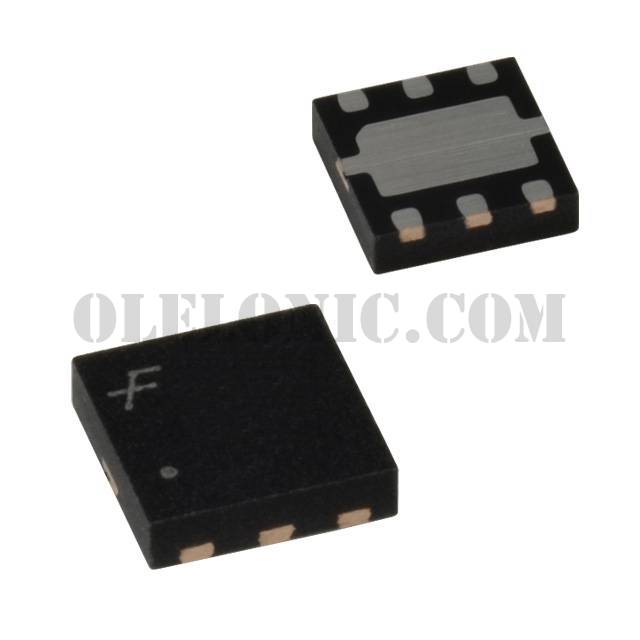

FDFM2P110

FDFM2P110

Part NumberFDFM2P110

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 3.5A 3X3 MLP

DatasheetFDFM2P110

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3.5A (Ta) 2W (Ta) Surface Mount MicroFET 3x3mm

To learn about the specification of FDFM2P110, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDFM2P110 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDFM2P110.
We are offering FDFM2P110 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDFM2P110 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDFM2P110
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	140mOhm @ 3.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	280pF @ 10V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MicroFET 3x3mm
Package / Case	6-WDFN Exposed Pad
