FDD8424H

FDD8424H

Part NumberFDD8424H

ManufacturerON Semiconductor

DescriptionMOSFET N/P-CH 40V 9A/6.5A DPAK

DatasheetFDD8424H

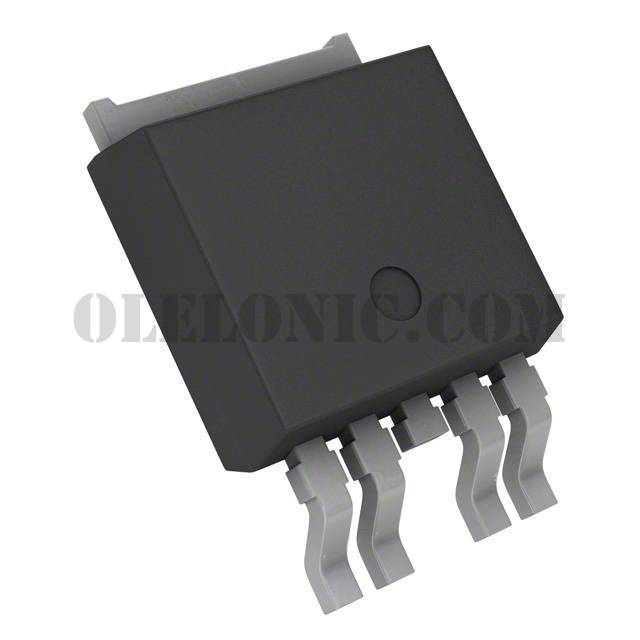

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 40V 9A, 6.5A 1.3W Surface Mount TO-252-4L

To learn about the specification of FDD8424H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDD8424H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDD8424H.
We are offering FDD8424H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDD8424H - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDD8424H
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	9A, 6.5A
Rds On (Max) @ Id, Vgs	24mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1000pF @ 20V
Power - Max	1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	TO-252-4L
Base Part Number	FDD8424
