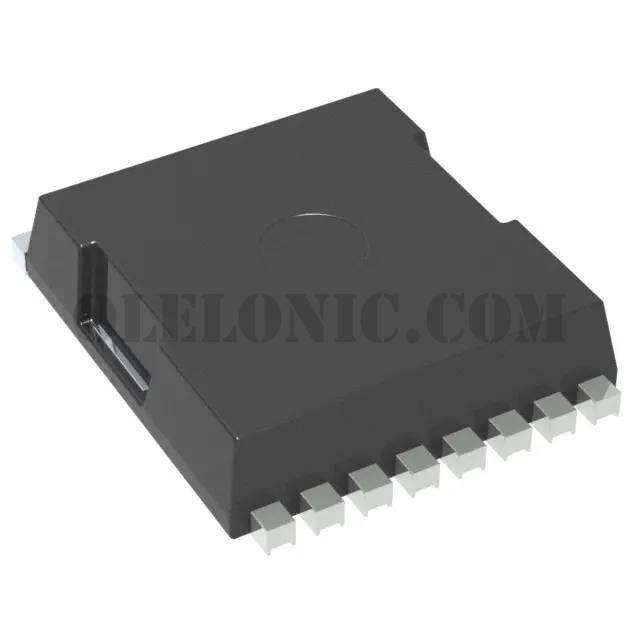

FDBL9403L-F085

FDBL9403L-F085

Part NumberFDBL9403L-F085

ManufacturerON Semiconductor

DescriptionNMOS TOLL 40V LL 0.72 MOH

DatasheetFDBL9403L-F085

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 53.3A (Tc) 3.5W (Tc) Surface Mount 8-HPSOF

To learn about the specification of FDBL9403L-F085, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDBL9403L-F085 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDBL9403L-F085.
We are offering FDBL9403L-F085 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDBL9403L-F085 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDBL9403L-F085
Standard Package	2000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	53.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.72mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	203nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14100pF @ 20V
FET Feature	-
Power Dissipation (Max)	3.5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HPSOF
Package / Case	8-PowerSFN
