FCMT125N65S3

FCMT125N65S3

Part NumberFCMT125N65S3

ManufacturerON Semiconductor

DescriptionSF3 650V 125MOHM MOSFET

DatasheetFCMT125N65S3

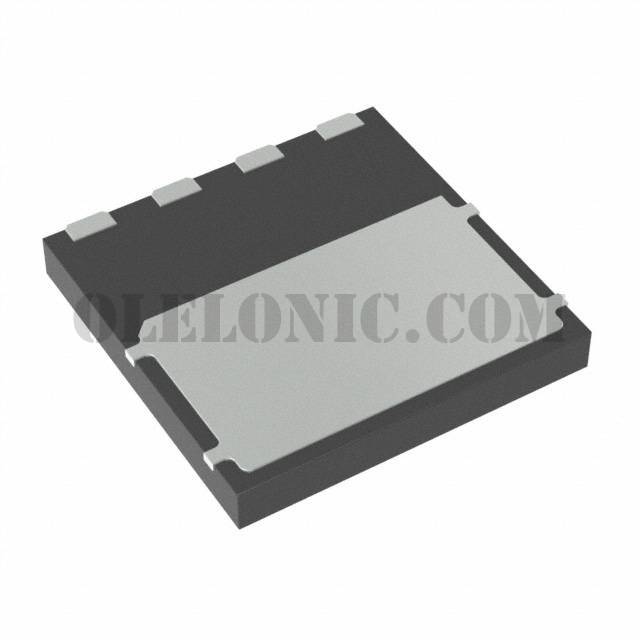

Package / Case4-PowerTSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 24A (Tc) 181W (Tc) Surface Mount 4-PQFN (8x8)

To learn about the specification of FCMT125N65S3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FCMT125N65S3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FCMT125N65S3.
We are offering FCMT125N65S3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FCMT125N65S3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FCMT125N65S3
Standard Package	3000
Manufacturer	ON Semiconductor
Series	SuperFET® III
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	125mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	4.5V @ 590µA
Gate Charge (Qg) (Max) @ Vgs	49nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1920pF @ 400V
FET Feature	-
Power Dissipation (Max)	181W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-PQFN (8x8)
Package / Case	4-PowerTSFN
