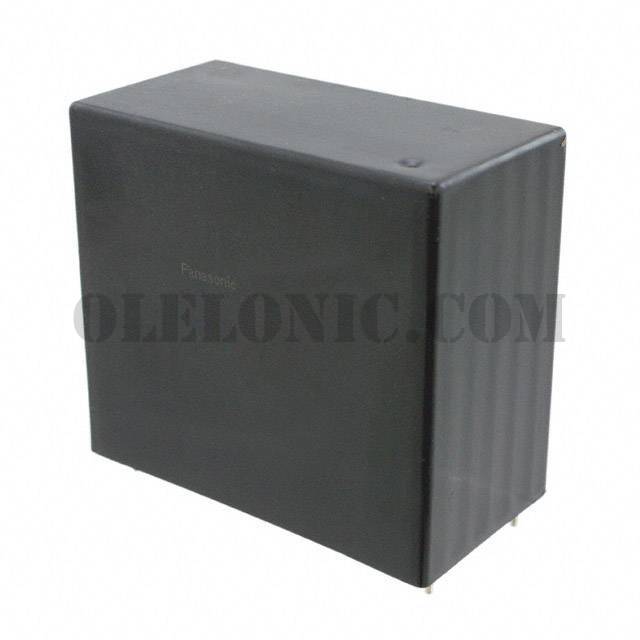

EZP-E1D156MTA

Part NumberEZP-E1D156MTA

ManufacturerPanasonic Electronic Components

DescriptionCAP FILM 15UF 1.3KVDC RAD 4LD

DatasheetEZP-E_TA Series Datasheet

Package / CaseRadial - 4 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial - 4 Leads

To learn about the specification of EZP-E1D156MTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EZP-E1D156MTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EZP-E1D156MTA.
We are offering EZP-E1D156MTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EZP-E1D156MTA - Product Attributes

Categories	Capacitors / Film Capacitors
Datasheet	EZP-E_TA Series Datasheet
Standard Package	50
Manufacturer	Panasonic Electronic Components
Series	EZPE
Packaging	Bulk
Part Status	Active
Capacitance	15µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	1300V (1.3kV)
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	14.5 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Size / Dimension	2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max)	2.028" (51.50mm)
Termination	PC Pins
Lead Spacing	2.067" (52.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Low ESR
