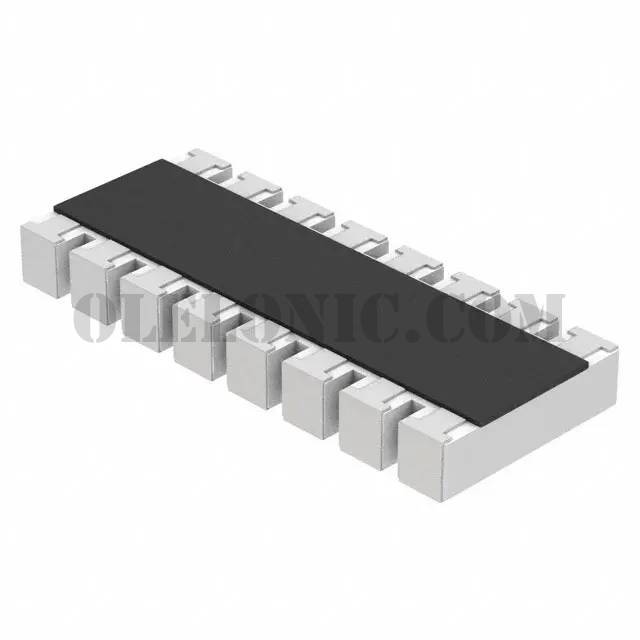

EXB-2HV472JV

Part NumberEXB-2HV472JV

ManufacturerPanasonic Electronic Components

DescriptionRES ARRAY 8 RES 4.7K OHM 1506

DatasheetEXB-xxV Series Datasheet

Package / Case1506, Convex, Long Side Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4.7k Ohm ±5% 62.5mW Power Per Element Isolated 8 Resistor Network/Array ±200ppm/°C 1506, Convex, Long Side Terminals

To learn about the specification of EXB-2HV472JV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EXB-2HV472JV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EXB-2HV472JV.
We are offering EXB-2HV472JV for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EXB-2HV472JV - Product Attributes

Categories	Resistors / Resistor Networks, Arrays
Datasheet	EXB-xxV Series Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	EXB
Packaging	Cut Tape (CT)
Part Status	Active
Circuit Type	Isolated
Resistance (Ohms)	4.7k
Tolerance	±5%
Number of Resistors	8
Resistor Matching Ratio	-
Resistor-Ratio-Drift	-
Number of Pins	16
Power Per Element	62.5mW
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 125°C
Applications	Automotive AEC-Q200
Mounting Type	Surface Mount
Package / Case	1506, Convex, Long Side Terminals
Supplier Device Package	1506
Size / Dimension	0.150" L x 0.063" W (3.80mm x 1.60mm)
Height - Seated (Max)	0.022" (0.55mm)
