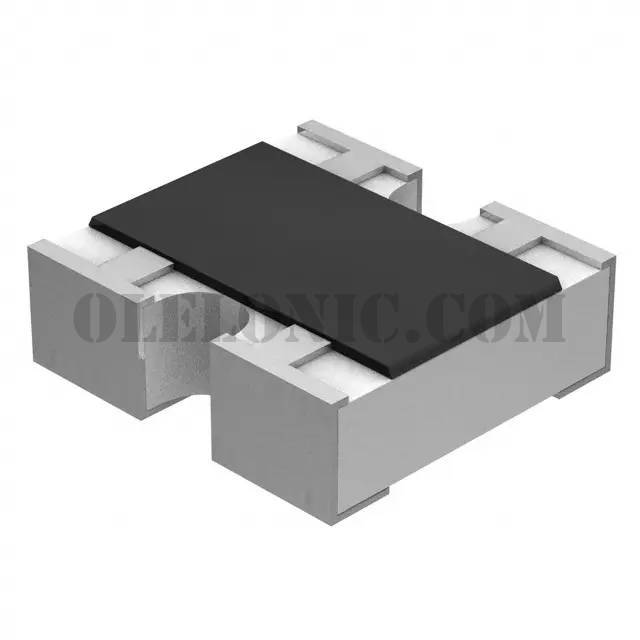

EXB-24V121JX

Part NumberEXB-24V121JX

ManufacturerPanasonic Electronic Components

DescriptionRES ARRAY 2 RES 120 OHM 0404

DatasheetEXB-xxV Series Datasheet

Package / Case0404 (1010 Metric), Convex

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description120 Ohm ±5% 62.5mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0404 (1010 Metric), Convex

To learn about the specification of EXB-24V121JX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EXB-24V121JX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EXB-24V121JX.
We are offering EXB-24V121JX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EXB-24V121JX - Product Attributes

Categories	Resistors / Resistor Networks, Arrays
Datasheet	EXB-xxV Series Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	EXB
Packaging	Cut Tape (CT)
Part Status	Active
Circuit Type	Isolated
Resistance (Ohms)	120
Tolerance	±5%
Number of Resistors	2
Resistor Matching Ratio	-
Resistor-Ratio-Drift	-
Number of Pins	4
Power Per Element	62.5mW
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 125°C
Applications	Automotive AEC-Q200
Mounting Type	Surface Mount
Package / Case	0404 (1010 Metric), Convex
Supplier Device Package	0404
Size / Dimension	0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max)	0.018" (0.45mm)
