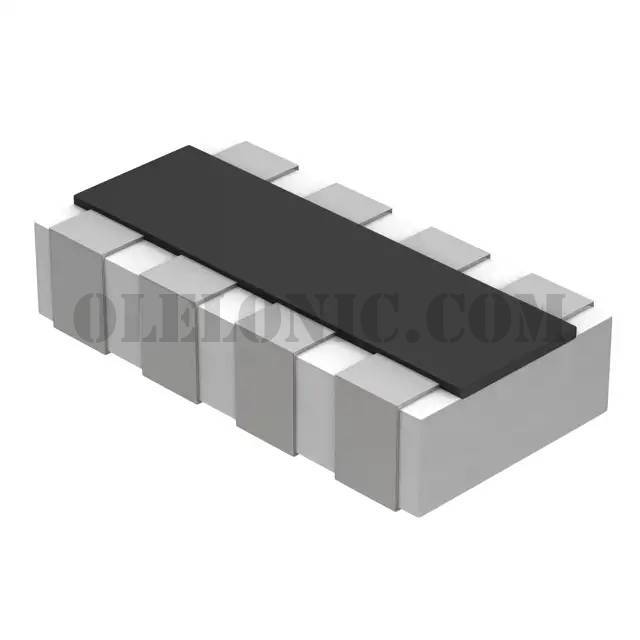

EXB-18V103JX

Part NumberEXB-18V103JX

ManufacturerPanasonic Electronic Components

DescriptionRES ARRAY 4 RES 10K OHM 0502

DatasheetEXB-xxV Series Datasheet

Package / Case0502 (1406 Metric), Long Side Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10k Ohm ±5% 31mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0502 (1406 Metric), Long Side Terminals

To learn about the specification of EXB-18V103JX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EXB-18V103JX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EXB-18V103JX.
We are offering EXB-18V103JX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EXB-18V103JX - Product Attributes

Categories	Resistors / Resistor Networks, Arrays
Datasheet	EXB-xxV Series Datasheet
Standard Package	10000
Manufacturer	Panasonic Electronic Components
Series	EXB
Packaging	Tape & Reel (TR)
Part Status	Active
Circuit Type	Isolated
Resistance (Ohms)	10k
Tolerance	±5%
Number of Resistors	4
Resistor Matching Ratio	-
Resistor-Ratio-Drift	-
Number of Pins	8
Power Per Element	31mW
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 125°C
Applications	-
Mounting Type	Surface Mount
Package / Case	0502 (1406 Metric), Long Side Terminals
Supplier Device Package	0502
Size / Dimension	0.055" L x 0.024" W (1.40mm x 0.60mm)
Height - Seated (Max)	0.018" (0.45mm)
