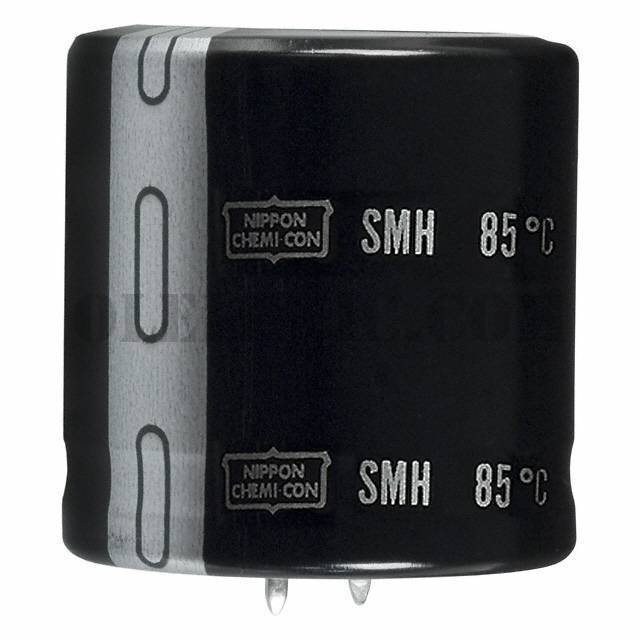

ESMH500VSN103MA35T

Part NumberESMH500VSN103MA35T

ManufacturerUnited Chemi-Con

DescriptionCAP ALUM 10000UF 20% 50V SNAP

DatasheetSMH Series Bulletin

Package / CaseRadial, Can - Snap-In

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10000µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 33mOhm @ 120Hz 2000 Hrs @ 85°C

To learn about the specification of ESMH500VSN103MA35T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ESMH500VSN103MA35T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ESMH500VSN103MA35T.
We are offering ESMH500VSN103MA35T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ESMH500VSN103MA35T - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SMH Series Bulletin
Standard Package	200
Manufacturer	United Chemi-Con
Series	SMH
Packaging	Bulk
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	33mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	4.92A @ 120Hz
Ripple Current @ High Frequency	5.3136A @ 100kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.378" (35.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
