Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	SMG Series
Standard Package	1000
Manufacturer	United Chemi-Con
Series	SMG
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	760mA @ 120Hz
Ripple Current @ High Frequency	1.14A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

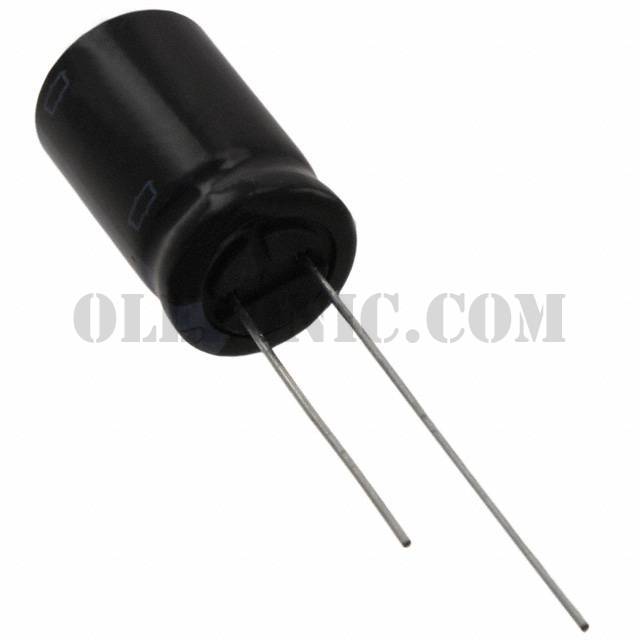

Package / Case	Radial, Can

ESMG250ELL123MP40S	United Chemi-Con, 12000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL102MJ20S	United Chemi-Con, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG160ELL471MHB5D	United Chemi-Con, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG100ELL471MF11D	United Chemi-Con, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG451ELL4R7MJ20S	United Chemi-Con, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG250ELL100ME11D	United Chemi-Con, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG500ELL101MHB5D	United Chemi-Con, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG101ELL471ML25S	United Chemi-Con, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG201ELL100MJC5S	United Chemi-Con, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG500ELL4R7ME11D	United Chemi-Con, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG500ELL222MN25S	United Chemi-Con, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View
ESMG350ELL332MN25S	United Chemi-Con, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, SMG	View

ESMG101ELL331MK25S

Part NumberESMG101ELL331MK25S
