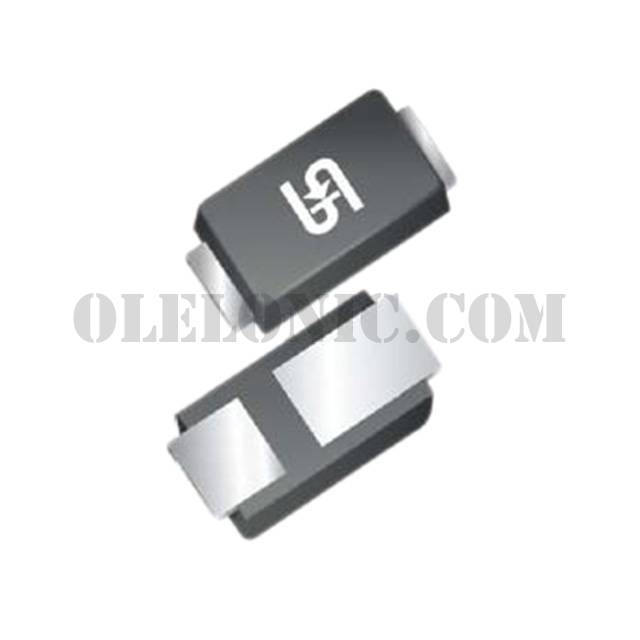

ESH1JM RSG

ESH1JM RSG

Part NumberESH1JM RSG

ManufacturerTaiwan Semiconductor Corporation

DescriptionDIODE GEN PURP 600V 1A MICRO SMA

DatasheetESH1DM - ESH1JM

Package / Case2-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 1A Surface Mount Micro SMA

To learn about the specification of ESH1JM RSG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ESH1JM RSG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ESH1JM RSG.
We are offering ESH1JM RSG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ESH1JM RSG - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ESH1DM - ESH1JM
Standard Package	3000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.5V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25ns
Current - Reverse Leakage @ Vr	1µA @ 600V
Capacitance @ Vr, F	3pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-SMD, Flat Lead
Supplier Device Package	Micro SMA
Operating Temperature - Junction	-55°C ~ 150°C
