ES3A
ES3A

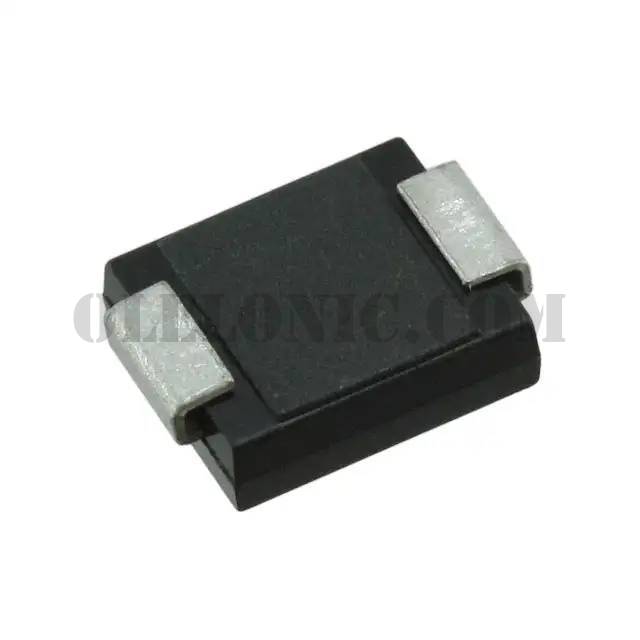

Part Number ES3A
Description DIODE GEN PURP 50V 3A SMC
Package / Case DO-214AB, SMC
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Diode Standard 50V 3A Surface Mount SMC (DO-214AB)
To learn about the specification of ES3A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ES3A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ES3A.
We are offering ES3A for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ES3A - Product Attributes
Categories
Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet ES3A-J
Standard Package 1
Manufacturer ON Semiconductor
Series -
Packaging Cut Tape (CT)
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 950mV @ 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 20ns
Current - Reverse Leakage @ Vr 10µA @ 50V
Capacitance @ Vr, F 45pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -50°C ~ 150°C
Base Part Number ES3A
