Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ES2A - ES2D
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	900mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	20ns
Current - Reverse Leakage @ Vr	10µA @ 100V
Capacitance @ Vr, F	18pF @ 4V, 1MHz
Mounting Type	Surface Mount

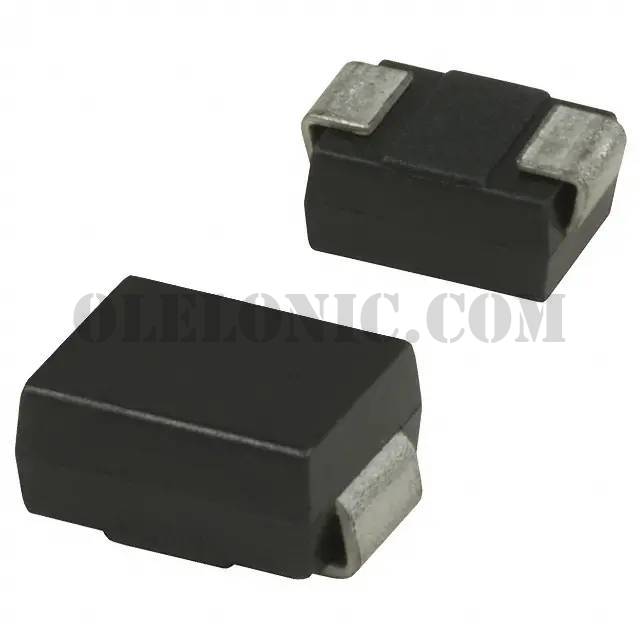

Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	ES2B
