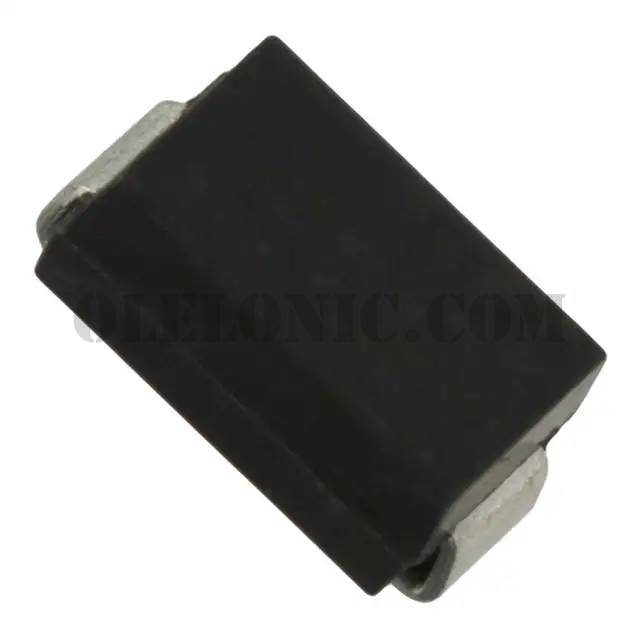

ES1C

ES1C

Part NumberES1C

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 150V 1A SMA

DatasheetES1A - ES1D

Package / CaseDO-214AC, SMA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 150V 1A Surface Mount SMA (DO-214AC)

To learn about the specification of ES1C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ES1C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ES1C.
We are offering ES1C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ES1C - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ES1A - ES1D
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	920mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	15ns
Current - Reverse Leakage @ Vr	5µA @ 150V
Capacitance @ Vr, F	7pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA (DO-214AC)
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	ES1C
