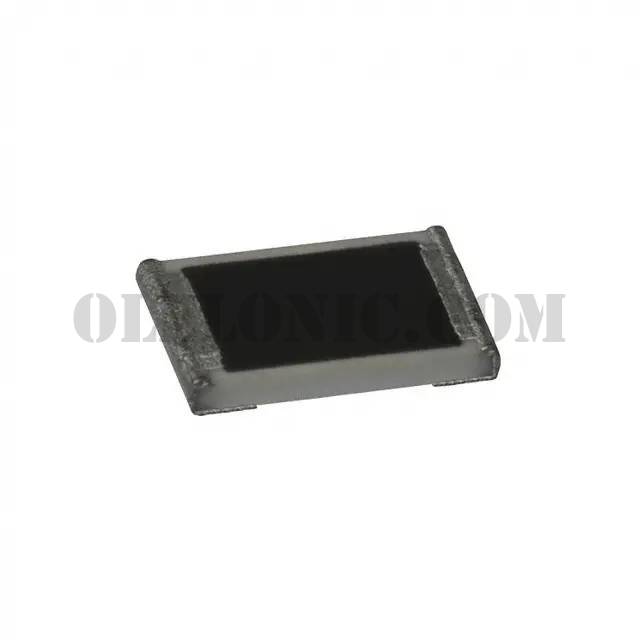

ERJ-XGNJ681Y

Part NumberERJ-XGNJ681Y

ManufacturerPanasonic Electronic Components

DescriptionRES SMD 680 OHM 5% 1/32W 01005

DatasheetERJ Sereis, Thick Film Datasheet

Package / Case01005 (0402 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680 Ohms ±5% 0.03W, 1/32W Chip Resistor 01005 (0402 Metric) Thick Film

To learn about the specification of ERJ-XGNJ681Y, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ERJ-XGNJ681Y with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ERJ-XGNJ681Y.
We are offering ERJ-XGNJ681Y for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ERJ-XGNJ681Y - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	ERJ Sereis, Thick Film Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	ERJ
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	680 Ohms
Tolerance	±5%
Power (Watts)	0.03W, 1/32W
Composition	Thick Film
Features	-
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 125°C
Package / Case	01005 (0402 Metric)
Supplier Device Package	01005
Size / Dimension	0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max)	0.006" (0.15mm)
Number of Terminations	2
Failure Rate	-
