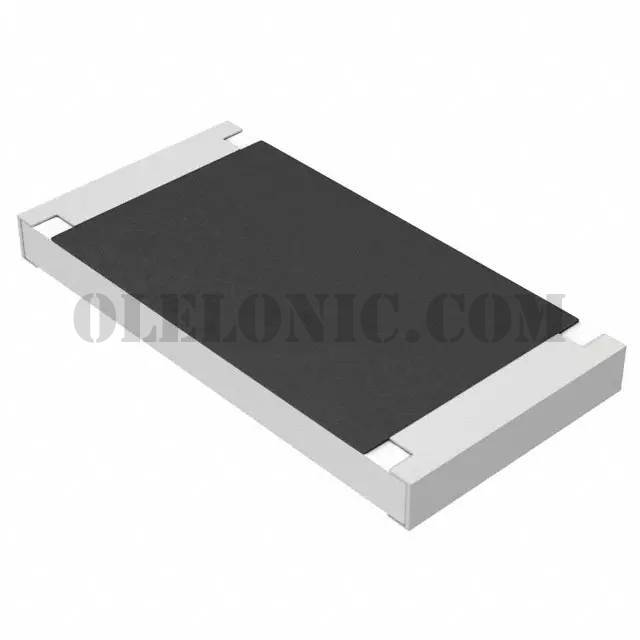

ERJ-1TYJ821U

Part NumberERJ-1TYJ821U

ManufacturerPanasonic Electronic Components

DescriptionRES SMD 820 OHM 5% 1W 2512

DatasheetERJ Sereis, Thick Film Datasheet

Package / Case2512 (6432 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description820 Ohms ±5% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film

To learn about the specification of ERJ-1TYJ821U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ERJ-1TYJ821U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ERJ-1TYJ821U.
We are offering ERJ-1TYJ821U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ERJ-1TYJ821U - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	ERJ Sereis, Thick Film Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	ERJ
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	820 Ohms
Tolerance	±5%
Power (Watts)	1W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	2512 (6432 Metric)
Supplier Device Package	2512
Size / Dimension	0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max)	0.028" (0.70mm)
Number of Terminations	2
Failure Rate	-
