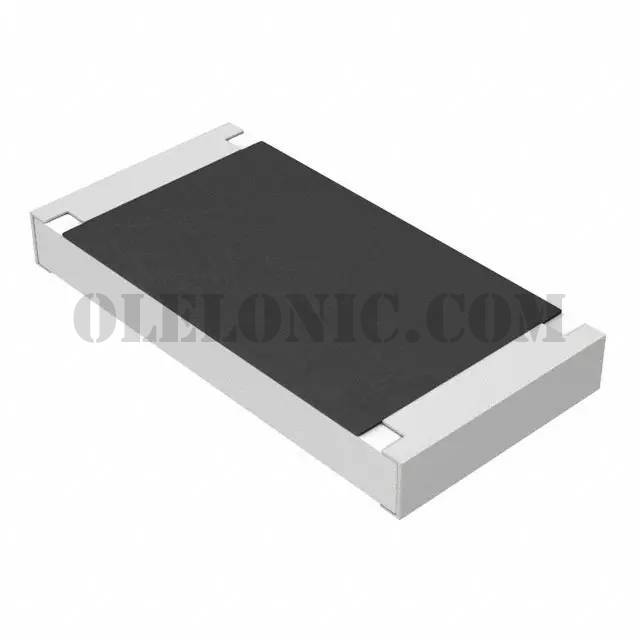

ERJ-12SF2261U

Part NumberERJ-12SF2261U

ManufacturerPanasonic Electronic Components

DescriptionRES SMD 2.26K OHM 1% 3/4W 2010

DatasheetERJ Series, Precision Resistor Datasheet

Package / Case2010 (5025 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.26 kOhms ±1% 0.75W, 3/4W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200 Thick Film

To learn about the specification of ERJ-12SF2261U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ERJ-12SF2261U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ERJ-12SF2261U.
We are offering ERJ-12SF2261U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ERJ-12SF2261U - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	ERJ Series, Precision Resistor Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	ERJ
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	2.26 kOhms
Tolerance	±1%
Power (Watts)	0.75W, 3/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±100ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	2010 (5025 Metric)
Supplier Device Package	2010
Size / Dimension	0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max)	0.028" (0.70mm)
Number of Terminations	2
Failure Rate	-
