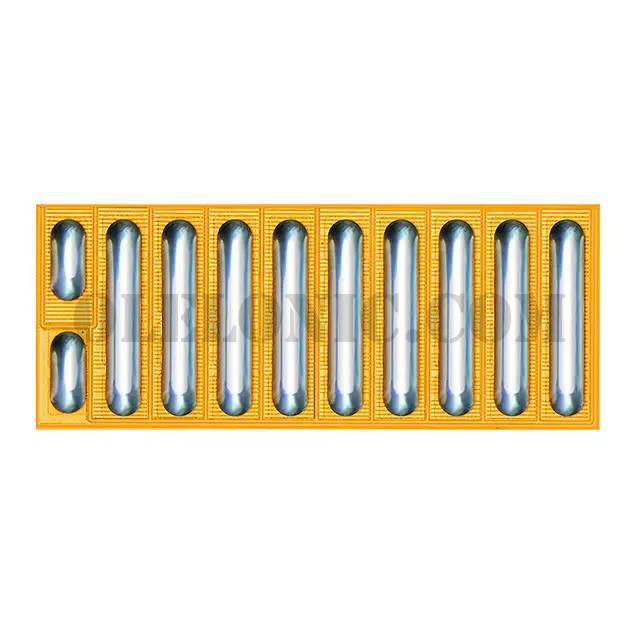

EPC2001

Part NumberEPC2001

ManufacturerEPC

DescriptionGANFET TRANS 100V 25A BUMPED DIE

DatasheetEPC2001

Package / CaseDie

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 25A (Ta) Surface Mount Die Outline (11-Solder Bar)

To learn about the specification of EPC2001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EPC2001 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EPC2001.
We are offering EPC2001 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EPC2001 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

EPC2001

Standard Package

500

Manufacturer

EPC

Series

eGaN®

Packaging

Tape & Reel (TR)

Part Status

Discontinued at Digi-Key

FET Type

N-Channel

Technology

GaNFET (Gallium Nitride)

Drain to Source Voltage (Vdss)

100V

Current - Continuous Drain (Id) @ 25°C

25A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

Rds On (Max) @ Id, Vgs

7mOhm @ 25A, 5V

Vgs(th) (Max) @ Id

2.5V @ 5mA

Gate Charge (Qg) (Max) @ Vgs

10nC @ 5V

Vgs (Max)

+6V, -5V

Input Capacitance (Ciss) (Max) @ Vds

950pF @ 50V

FET Feature

Power Dissipation (Max)

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

Die Outline (11-Solder Bar)

Package / Case

Die
