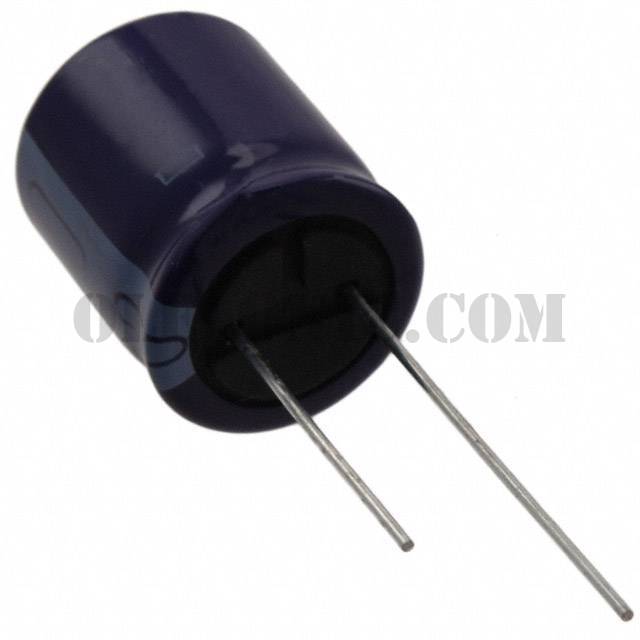

ELXZ630ELL821MM25S

Part NumberELXZ630ELL821MM25S

To learn about the specification of ELXZ630ELL821MM25S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELXZ630ELL821MM25S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELXZ630ELL821MM25S.
We are offering ELXZ630ELL821MM25S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LXZ Series
Standard Package	500
Manufacturer	United Chemi-Con
Series	LXZ
Packaging	Bulk
Part Status	Active
Capacitance	820µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	1.554A @ 120Hz
Ripple Current @ High Frequency	2.59A @ 100kHz
Impedance	43 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
