ELL-6SH4R7M
ELL-6SH4R7M

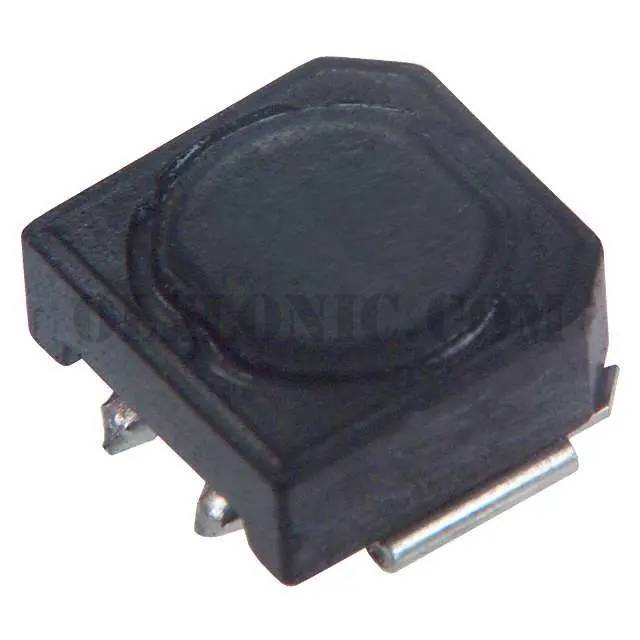

Part Number ELL-6SH4R7M
Description FIXED IND 4.7UH 2A 42 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 4.7µH Shielded Wirewound Inductor 2A 42mOhm Nonstandard
To learn about the specification of ELL-6SH4R7M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELL-6SH4R7M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELL-6SH4R7M.
We are offering ELL-6SH4R7M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ELL-6SH4R7M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet H Series Datasheet
Standard Package 1000
Manufacturer Panasonic Electronic Components
Series H
Packaging Tape & Reel (TR)
Part Status Last Time Buy
Type Wirewound
Material - Core -
Inductance 4.7µH
Tolerance ±20%
Current Rating (Amps) 2A
Current - Saturation -
Shielding Shielded
DC Resistance (DCR) 42mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.252" L x 0.236" W (6.40mm x 6.00mm)
Height - Seated (Max) 0.130" (3.30mm)
