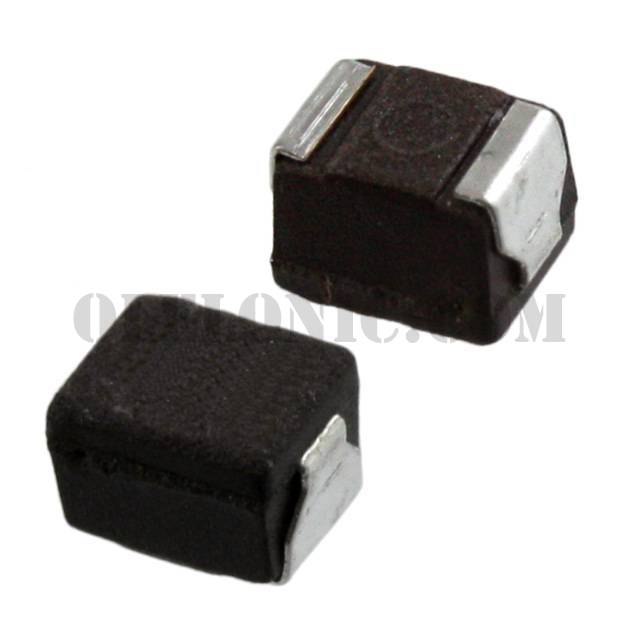

ELJ-PA331KF

Part NumberELJ-PA331KF

ManufacturerPanasonic Electronic Components

DescriptionFIXED IND 330UH 50MA 16 OHM SMD

DatasheetELJ-PF, PE, PC, PA, PB, LC, LA Series

Package / Case1210 (3225 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description330µH Unshielded Wirewound Inductor 50mA 16Ohm Max 1210 (3225 Metric)

To learn about the specification of ELJ-PA331KF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELJ-PA331KF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELJ-PA331KF.
We are offering ELJ-PA331KF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELJ-PA331KF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

ELJ-PF, PE, PC, PA, PB, LC, LA Series

Standard Package

2000

Manufacturer

Panasonic Electronic Components

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

330µH

Tolerance

±10%

Current Rating (Amps)

50mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

16Ohm Max

Q @ Freq

20 @ 796kHz

Frequency - Self Resonant

3MHz

Ratings

Operating Temperature

-20°C ~ 85°C

Inductance Frequency - Test

796kHz

Mounting Type

Surface Mount

Package / Case

1210 (3225 Metric)

Supplier Device Package

Size / Dimension

0.126" L x 0.098" W (3.20mm x 2.50mm)

Height - Seated (Max)

0.094" (2.40mm)
