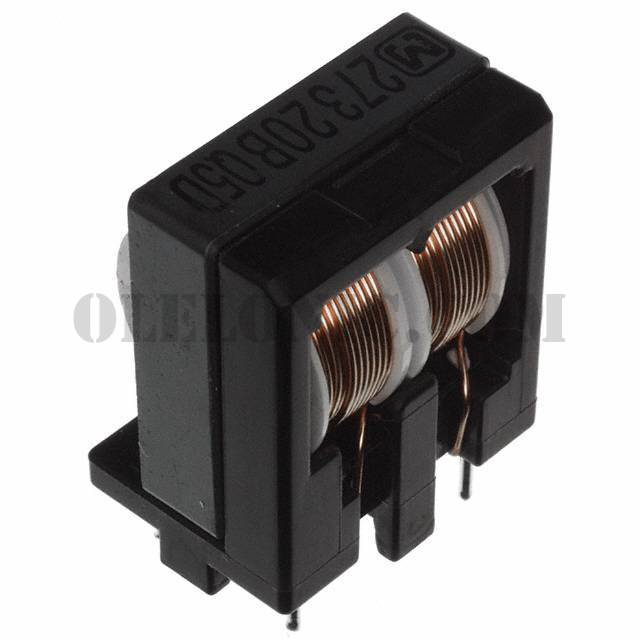

ELF-22V020B

Part NumberELF-22V020B

ManufacturerPanasonic Electronic Components

DescriptionCOMMON MODE CHOKE 8A 2LN TH

DatasheetELF N,V Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 8A DCR 14mOhm (Typ)

To learn about the specification of ELF-22V020B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELF-22V020B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELF-22V020B.
We are offering ELF-22V020B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELF-22V020B - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

ELF N,V Series

Standard Package

200

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Filter Type

Number of Lines

Current Rating (Max)

DC Resistance (DCR) (Max)

14mOhm (Typ)

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

1.260" L x 0.906" W (32.00mm x 23.00mm)

Height (Max)

1.535" (39.00mm)

Package / Case

Vertical, 4 PC Pin
