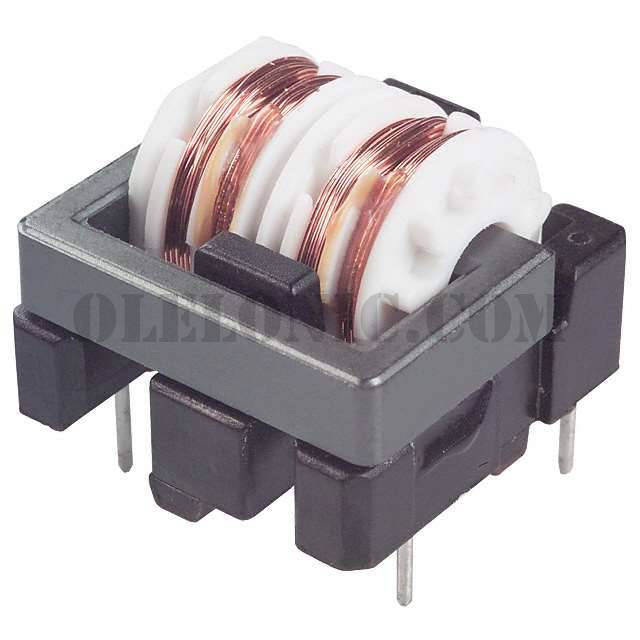

ELF-18D270D

Part NumberELF-18D270D

ManufacturerPanasonic Electronic Components

DescriptionCOMMON MODE CHOKE 1.1A 2LN TH

DatasheetV and H Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 1.1A DCR 248mOhm (Typ)

To learn about the specification of ELF-18D270D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELF-18D270D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELF-18D270D.
We are offering ELF-18D270D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELF-18D270D - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

V and H Series

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Filter Type

Number of Lines

Current Rating (Max)

1.1A

DC Resistance (DCR) (Max)

248mOhm (Typ)

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

0.787" L x 0.827" W (20.00mm x 21.00mm)

Height (Max)

0.787" (20.00mm)

Package / Case

Vertical, 4 PC Pin
