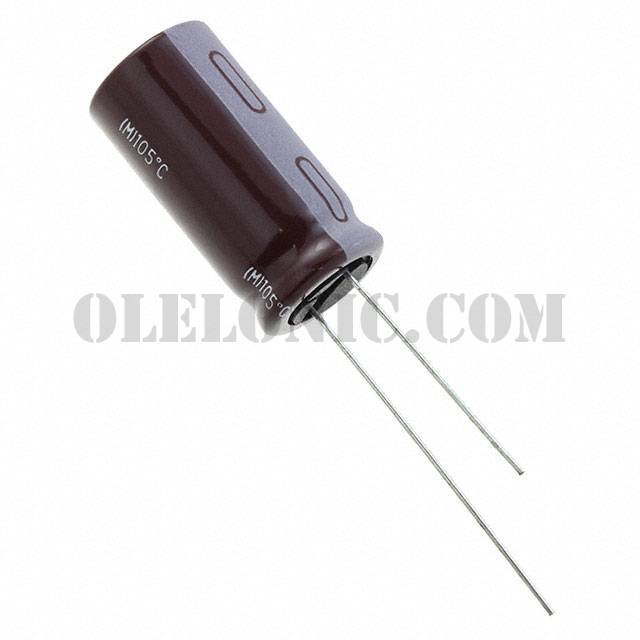

EKZN630ELL561MK25S

Part NumberEKZN630ELL561MK25S

To learn about the specification of EKZN630ELL561MK25S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EKZN630ELL561MK25S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EKZN630ELL561MK25S.
We are offering EKZN630ELL561MK25S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	KZN Series
Standard Package	1000
Manufacturer	United Chemi-Con
Series	KZN
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.23A @ 120Hz
Ripple Current @ High Frequency	2.46A @ 100kHz
Impedance	26 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
