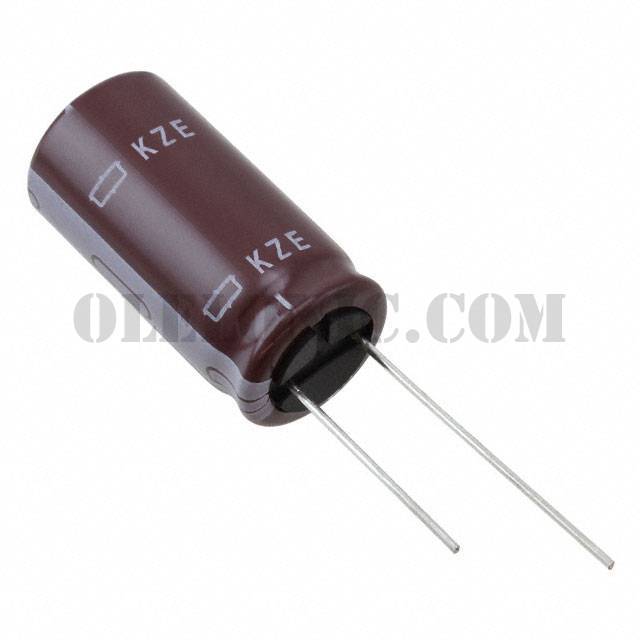

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	KZE Series
Standard Package	500
Manufacturer	United Chemi-Con
Series	KZE
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	925mA @ 120Hz
Impedance	32 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

EKZE500ELL560MF11D	United Chemi-Con, 56µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KZE	View
EKZE101ELL221MK25S	United Chemi-Con, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE101ELL681MMP1S	United Chemi-Con, 680µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE250ELL331MH15D	United Chemi-Con, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, KZE	View
EKZE350ELL122ML20S	United Chemi-Con, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE6R3ELL821MH15D	United Chemi-Con, 820µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, KZE	View
EKZE100ELL222MK20S	United Chemi-Con, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE500ELL220ME11D	United Chemi-Con, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KZE	View
EKZE160ELL152MK20S	United Chemi-Con, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE500ELL681MK30S	United Chemi-Con, 680µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE350ELL681MK20S	United Chemi-Con, 680µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE250ELL101MF11D	United Chemi-Con, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KZE	View

EKZE101ELL471MLN3S

Part NumberEKZE101ELL471MLN3S
