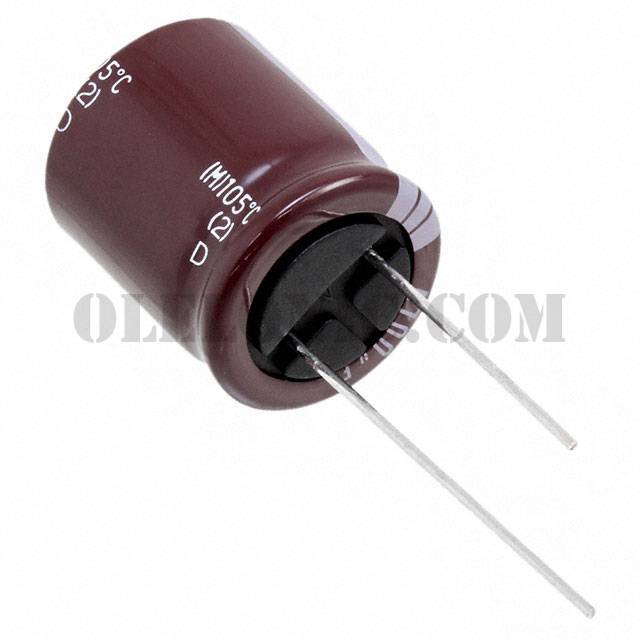

EKYB800ELL561MM20S

Part NumberEKYB800ELL561MM20S

To learn about the specification of EKYB800ELL561MM20S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EKYB800ELL561MM20S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EKYB800ELL561MM20S.
We are offering EKYB800ELL561MM20S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	KYB Series
Standard Package	500
Manufacturer	United Chemi-Con
Series	KYB
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.05A @ 120Hz
Ripple Current @ High Frequency	2.1A @ 100kHz
Impedance	32 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
