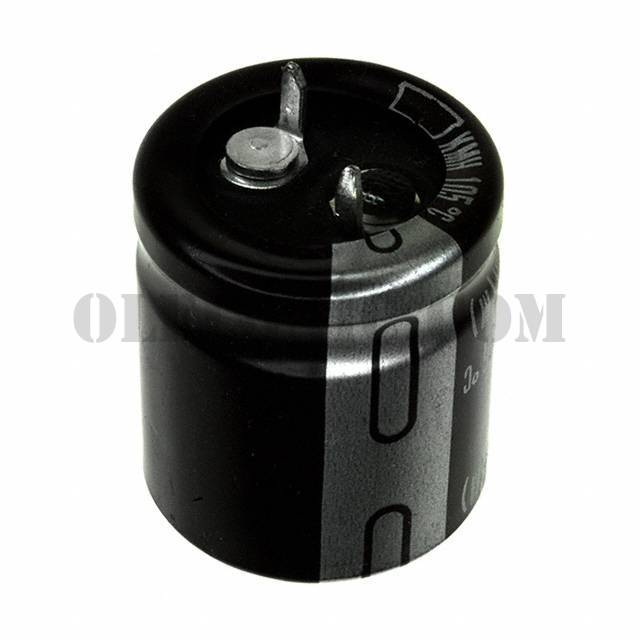

EKMH101VSN561MP25T

Part NumberEKMH101VSN561MP25T

ManufacturerUnited Chemi-Con

DescriptionCAP ALUM 560UF 20% 100V SNAP

DatasheetKMH Series Bulletin

Package / CaseRadial, Can - Snap-In

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 444mOhm @ 120Hz 2000 Hrs @ 105°C

To learn about the specification of EKMH101VSN561MP25T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EKMH101VSN561MP25T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EKMH101VSN561MP25T.
We are offering EKMH101VSN561MP25T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EKMH101VSN561MP25T - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	KMH Series Bulletin
Standard Package	200
Manufacturer	United Chemi-Con
Series	KMH
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	444mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.05A @ 120Hz
Ripple Current @ High Frequency	1.26A @ 100kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
