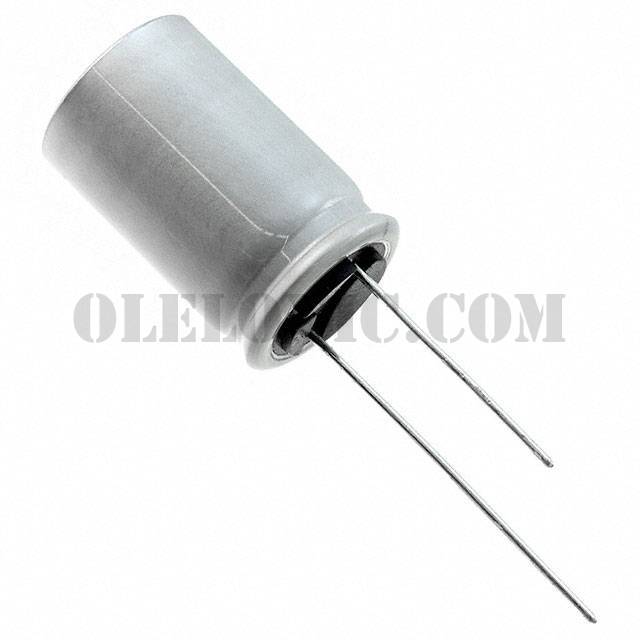

EGPD630ELL102ML25H

Part NumberEGPD630ELL102ML25H

ManufacturerUnited Chemi-Con

DescriptionCAP ALUM 1000UF 20% 63V RADIAL

DatasheetGPD Series

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 38mOhm @ 100kHz 2000 Hrs @ 135°C

To learn about the specification of EGPD630ELL102ML25H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EGPD630ELL102ML25H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EGPD630ELL102ML25H.
We are offering EGPD630ELL102ML25H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EGPD630ELL102ML25H - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	GPD Series
Standard Package	500
Manufacturer	United Chemi-Con
Series	GPD
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	38mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 135°C
Operating Temperature	-40°C ~ 135°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	1.764A @ 120Hz
Ripple Current @ High Frequency	2.94A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
