Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	EGP10A - EGP10K
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	950mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	5µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Through Hole

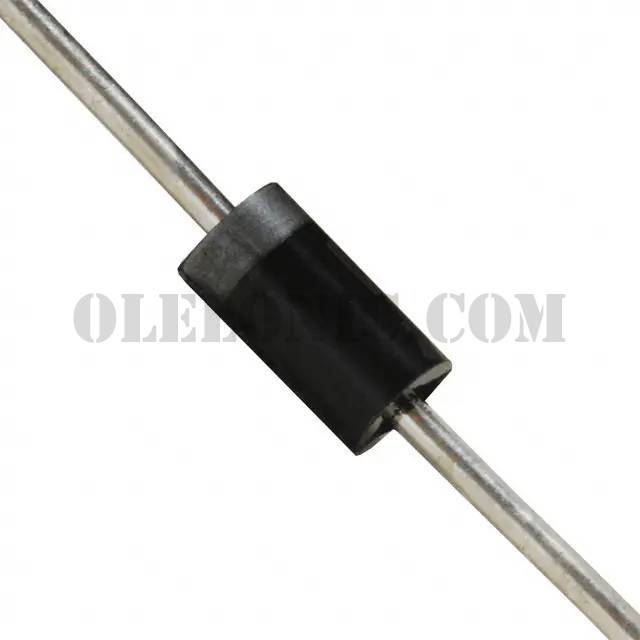

Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-204AL (DO-41)
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	EGP10D
