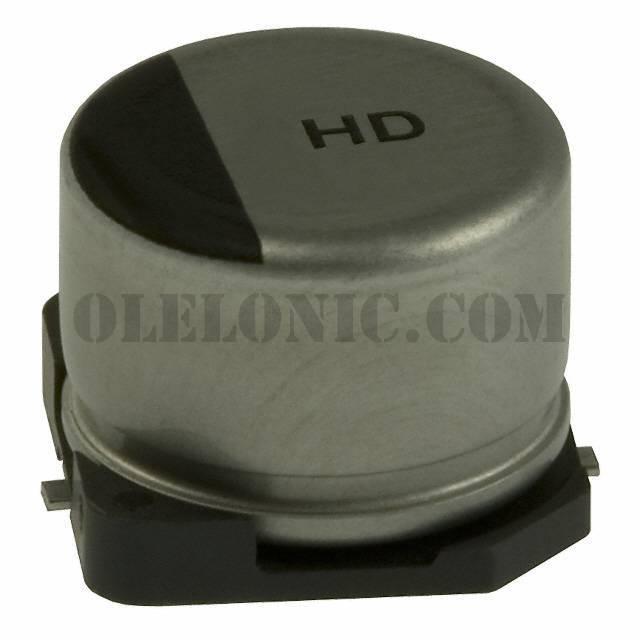

EEV-HD2A3R3P

Part NumberEEV-HD2A3R3P

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 3.3UF 20% 100V SMD

DatasheetHD Series, Type V

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C

To learn about the specification of EEV-HD2A3R3P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEV-HD2A3R3P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEV-HD2A3R3P.
We are offering EEV-HD2A3R3P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEV-HD2A3R3P - Product Attributes

Categories

Capacitors / Aluminum Electrolytic Capacitors

Datasheet

HD Series, Type V

Standard Package

1000

Manufacturer

Panasonic Electronic Components

Series

HD-V

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Capacitance

3.3µF

Tolerance

±20%

Voltage - Rated

100V

ESR (Equivalent Series Resistance)

Lifetime @ Temp.

5000 Hrs @ 105°C

Operating Temperature

-40°C ~ 105°C

Polarization

Polar

Ratings

Applications

General Purpose

Ripple Current @ Low Frequency

30mA @ 120Hz

Ripple Current @ High Frequency

51mA @ 10kHz

Impedance

2 Ohms

Lead Spacing

Size / Dimension

0.315" Dia (8.00mm)

Height - Seated (Max)

0.244" (6.20mm)

Surface Mount Land Size

0.327" L x 0.327" W (8.30mm x 8.30mm)

Mounting Type

Surface Mount

Package / Case

Radial, Can - SMD
