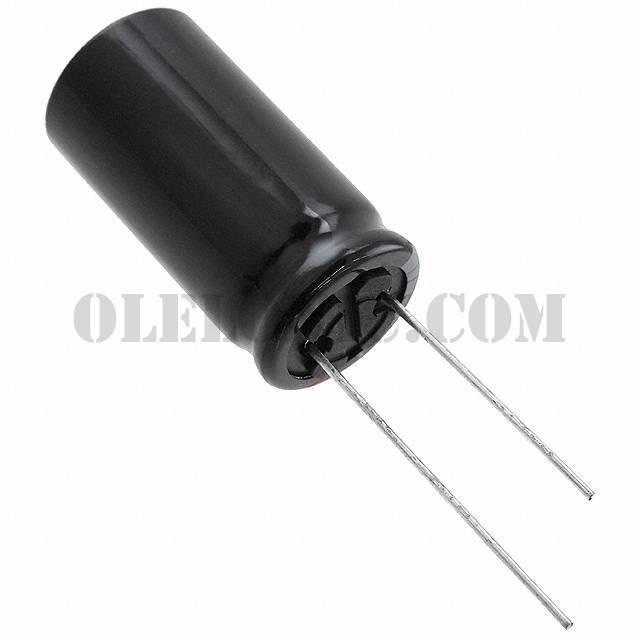

EEU-TP1V202

Part NumberEEU-TP1V202

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 2000UF 20% 35V RADIAL

DatasheetEEU-TP1V202 View All Specifications

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2000µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C

To learn about the specification of EEU-TP1V202, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEU-TP1V202 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEU-TP1V202.
We are offering EEU-TP1V202 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEU-TP1V202 - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	EEU-TP1V202 View All Specifications
Standard Package	100
Manufacturer	Panasonic Electronic Components
Series	TP
Packaging	Bulk
Part Status	Active
Capacitance	2000µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 125°C
Operating Temperature	-40°C ~ 135°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	2.6A @ 120Hz
Ripple Current @ High Frequency	2.71A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
