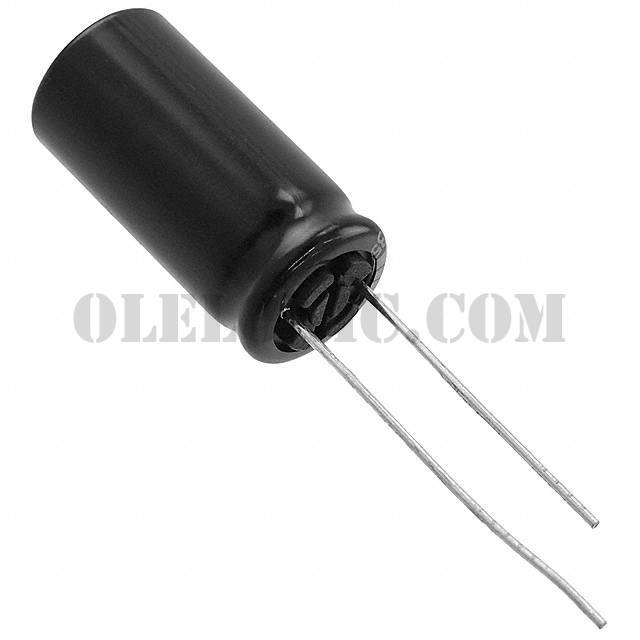

EEU-TP1E821

Part NumberEEU-TP1E821

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 820UF 20% 25V RADIAL

DatasheetEEU-TP1E821 View All Specifications

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description820µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C

To learn about the specification of EEU-TP1E821, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEU-TP1E821 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEU-TP1E821.
We are offering EEU-TP1E821 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEU-TP1E821 - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	EEU-TP1E821 View All Specifications
Standard Package	200
Manufacturer	Panasonic Electronic Components
Series	TP
Packaging	Bulk
Part Status	Active
Capacitance	820µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-40°C ~ 135°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	1.155A @ 120Hz
Ripple Current @ High Frequency	1.1A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
