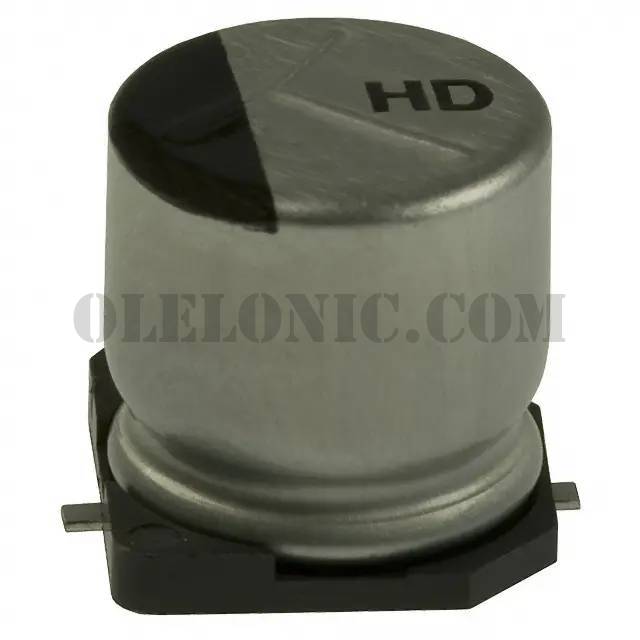

EEE-HD1H220P

Part NumberEEE-HD1H220P

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 22UF 20% 50V SMD

DatasheetEEE-HD1H220P View All Specifications

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C

To learn about the specification of EEE-HD1H220P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEE-HD1H220P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEE-HD1H220P.
We are offering EEE-HD1H220P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEE-HD1H220P - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	EEE-HD1H220P View All Specifications
Standard Package	1000
Manufacturer	Panasonic Electronic Components
Series	HD-V
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive, High Temperature Reflow
Ripple Current @ Low Frequency	50mA @ 120Hz
Ripple Current @ High Frequency	85mA @ 10kHz
Impedance	2 Ohms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
