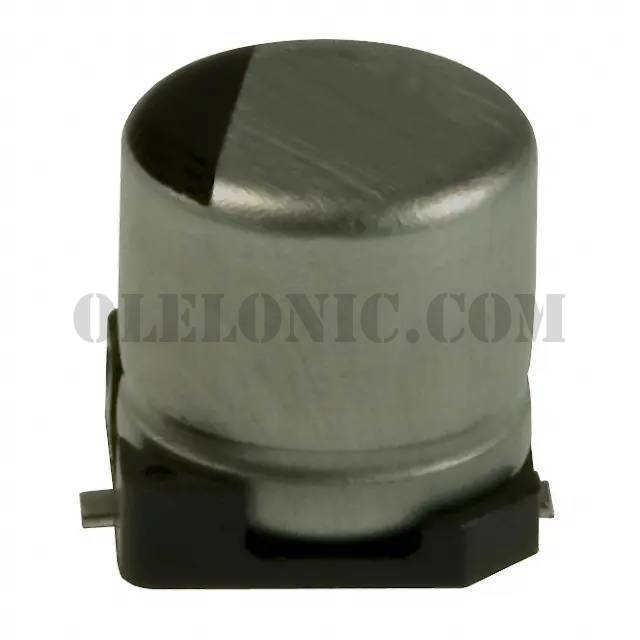

EEE-1EA220WAR

EEE-1EA220WAR

Part NumberEEE-1EA220WAR

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 22UF 20% 25V SMD

DatasheetS Series, Type V (Suffix A)

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C

To learn about the specification of EEE-1EA220WAR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEE-1EA220WAR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEE-1EA220WAR.
We are offering EEE-1EA220WAR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEE-1EA220WAR - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	S Series, Type V (Suffix A)
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	S
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	35mA @ 120Hz
Ripple Current @ High Frequency	59.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
