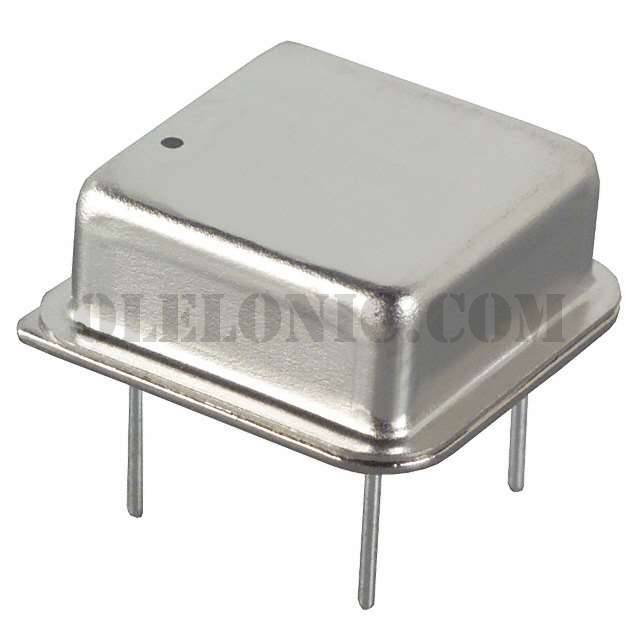

ECS-2200BX-098

Part NumberECS-2200BX-098

ManufacturerECS Inc.

DescriptionXTAL OSC XO 9.8304MHZ HCMOS TTL

DatasheetECS-2200X Series

Package / Case8-DIP, 4 Leads (Half Size, Metal Can)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description9.8304MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 8-DIP, 4 Leads (Half Size, Metal Can)

To learn about the specification of ECS-2200BX-098, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECS-2200BX-098 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECS-2200BX-098.
We are offering ECS-2200BX-098 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECS-2200BX-098 - Product Attributes

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	ECS-2200X Series
Standard Package	40
Manufacturer	ECS Inc.
Series	ECS-2200X
Packaging	Tube
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	9.8304MHz
Function	Enable/Disable
Output	HCMOS, TTL
Voltage - Supply	5V
Frequency Stability	±50ppm
Absolute Pull Range (APR)	-
Operating Temperature	0°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	25mA
Ratings	-
Mounting Type	Through Hole
Package / Case	8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension	0.520" L x 0.520" W (13.20mm x 13.20mm)
Height - Seated (Max)	0.213" (5.40mm)
Current - Supply (Disable) (Max)	-
