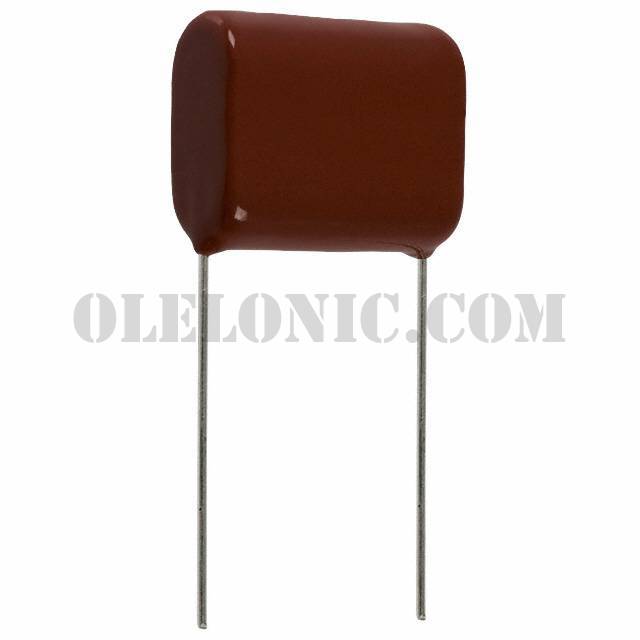

Categories	Capacitors / Film Capacitors
Datasheet	ECQ-E(F) Series
Standard Package	100
Manufacturer	Panasonic Electronic Components
Series	ECQ-E(F)
Packaging	Bulk
Part Status	Active
Capacitance	8.2µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	100V
Dielectric Material	Polyester, Metallized
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.394" W (26.00mm x 10.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	General Purpose
Ratings	-
Features	-

ECQ-E2124JF	Panasonic Electronic Components, 0.12µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E6103JF	Panasonic Electronic Components, 10000pF Film Capacitor 630V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E2154JF	Panasonic Electronic Components, 0.15µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E1395KF	Panasonic Electronic Components, 3.9µF Film Capacitor 100V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E1825JF	Panasonic Electronic Components, 8.2µF Film Capacitor 100V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E6123JF	Panasonic Electronic Components, 0.012µF Film Capacitor 630V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E2565JF	Panasonic Electronic Components, 5.6µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E1565JF	Panasonic Electronic Components, 5.6µF Film Capacitor 100V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E1684JF	Panasonic Electronic Components, 0.68µF Film Capacitor 100V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E2224JF	Panasonic Electronic Components, 0.22µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E6564JF	Panasonic Electronic Components, 0.56µF Film Capacitor 630V Polyester, Metallized Radial, ECQ-E(F)	View
ECQ-E6684KF	Panasonic Electronic Components, 0.68µF Film Capacitor 630V Polyester, Metallized Radial, ECQ-E(F)	View

ECQ-E1825JF

Part NumberECQ-E1825JF
