ECH8697R-TL-W

ECH8697R-TL-W

Part NumberECH8697R-TL-W

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 24V 10A SOT-28

DatasheetECH8697R

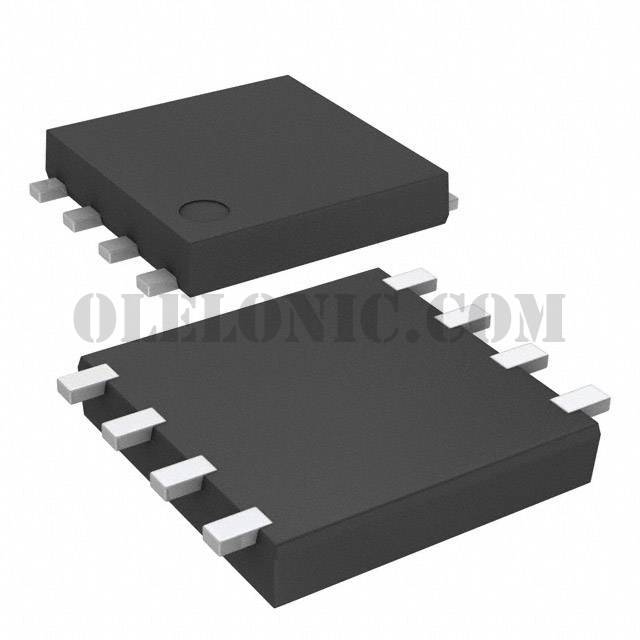

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 24V 10A 1.5W Surface Mount SOT-28FL/ECH8

To learn about the specification of ECH8697R-TL-W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECH8697R-TL-W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECH8697R-TL-W.
We are offering ECH8697R-TL-W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECH8697R-TL-W - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	ECH8697R
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)	24V
Current - Continuous Drain (Id) @ 25°C	10A
Rds On (Max) @ Id, Vgs	11.6mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1.5W
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	SOT-28FL/ECH8
