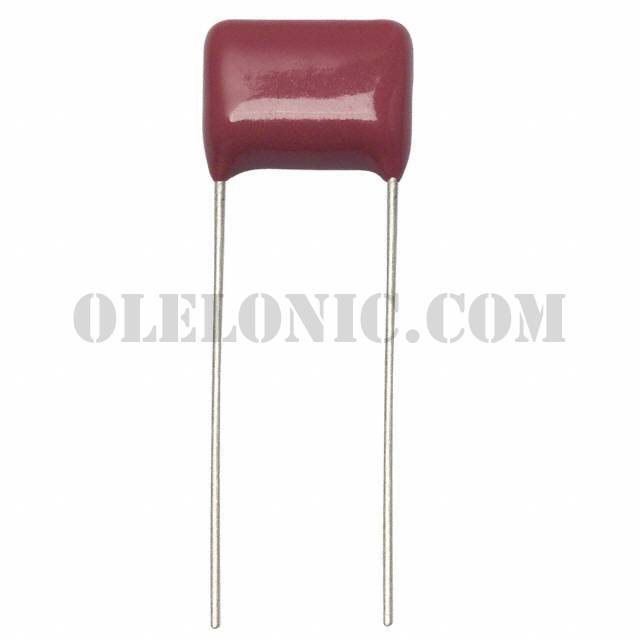

ECH-S1563JZ

Part NumberECH-S1563JZ

ManufacturerPanasonic Electronic Components

DescriptionCAP FILM 0.056UF 5% 100VDC RAD

DatasheetECHS(Z) Type

Package / CaseRadial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description0.056µF Film Capacitor 100V Polyphenylene Sulfide (PPS) Radial

To learn about the specification of ECH-S1563JZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECH-S1563JZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECH-S1563JZ.
We are offering ECH-S1563JZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECH-S1563JZ - Product Attributes

Categories

Capacitors / Film Capacitors

Datasheet

ECHS(Z) Type

Standard Package

100

Manufacturer

Panasonic Electronic Components

Series

ECHS(Z)

Packaging

Bulk

Part Status

Obsolete

Capacitance

0.056µF

Tolerance

±5%

Voltage Rating - AC

Voltage Rating - DC

100V

Dielectric Material

Polyphenylene Sulfide (PPS)

Operating Temperature

-40°C ~ 125°C

Mounting Type

Through Hole

Package / Case

Radial

Size / Dimension

0.571" L x 0.256" W (14.50mm x 6.50mm)

Height - Seated (Max)

0.520" (13.20mm)

Termination

PC Pins

Lead Spacing

0.394" (10.00mm)

Applications

High Frequency, Switching

Ratings

Features
