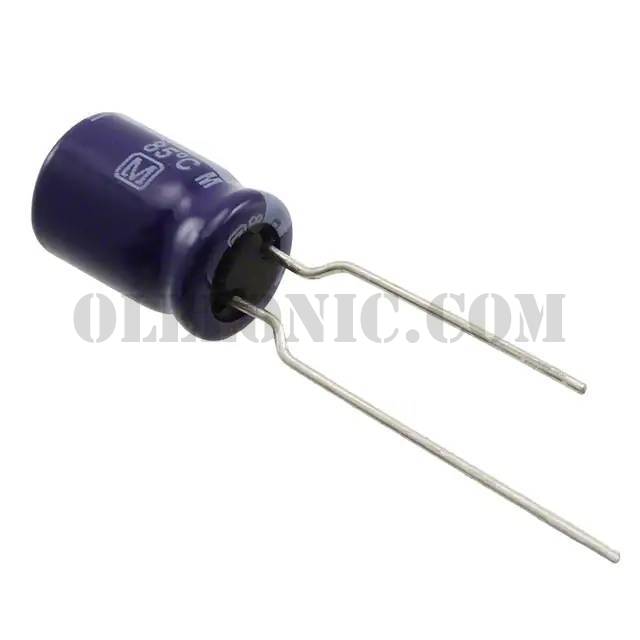

ECA-2AM470B

ECA-2AM470B

Part NumberECA-2AM470B

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 47UF 20% 100V RADIAL

DatasheetECA-xxM Series, Type A

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

To learn about the specification of ECA-2AM470B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECA-2AM470B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECA-2AM470B.
We are offering ECA-2AM470B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECA-2AM470B - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ECA-xxM Series, Type A
Standard Package	1000
Manufacturer	Panasonic Electronic Components
Series	M
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	180mA @ 120Hz
Ripple Current @ High Frequency	306mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
