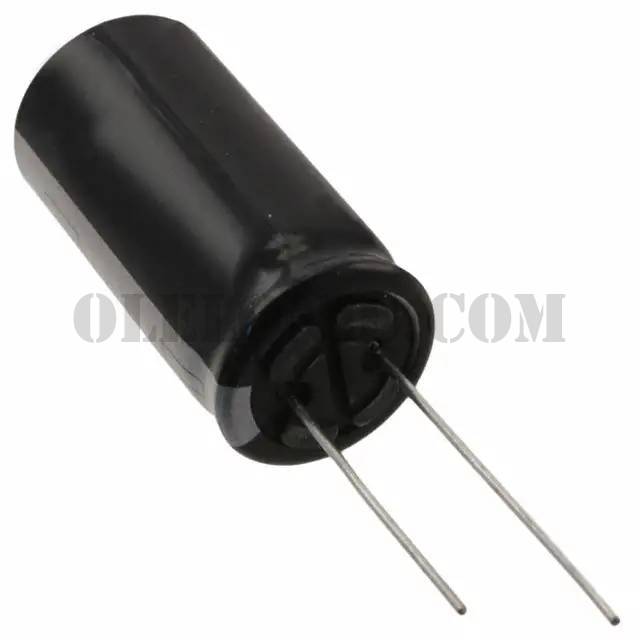

ECA-1EHG682

Part NumberECA-1EHG682

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 6800UF 20% 25V RADIAL

DatasheetECA-1EHG682 View All Specifications

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description6800µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

To learn about the specification of ECA-1EHG682, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECA-1EHG682 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECA-1EHG682.
We are offering ECA-1EHG682 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECA-1EHG682 - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ECA-1EHG682 View All Specifications
Standard Package	50
Manufacturer	Panasonic Electronic Components
Series	NHG
Packaging	Bulk
Part Status	Active
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.04A @ 120Hz
Ripple Current @ High Frequency	2.346A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
