EC3H02BA-TL-H

Part NumberEC3H02BA-TL-H

ManufacturerON Semiconductor

DescriptionRF TRANS NPN 10V 7GHZ 3-ECSP1006

DatasheetEC3H02BA

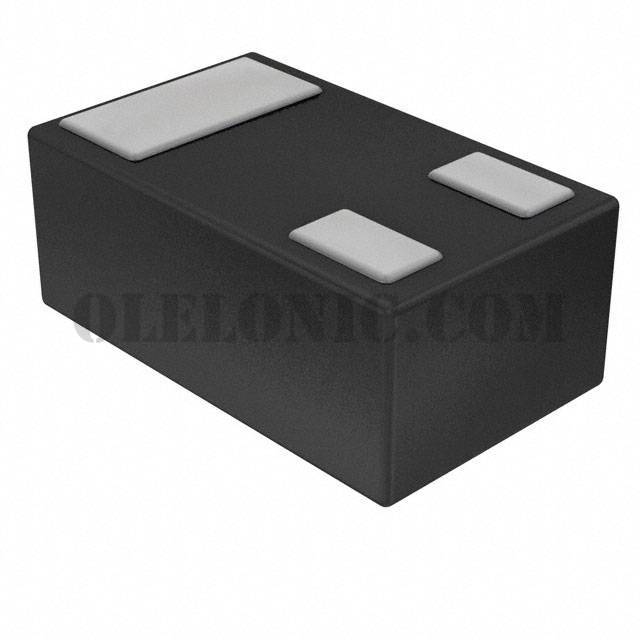

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 10V 70mA 7GHz 100mW Surface Mount 3-ECSP1006

To learn about the specification of EC3H02BA-TL-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EC3H02BA-TL-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EC3H02BA-TL-H.
We are offering EC3H02BA-TL-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EC3H02BA-TL-H - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

Datasheet

EC3H02BA

Standard Package

8000

Manufacturer

ON Semiconductor

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Transistor Type

NPN

Voltage - Collector Emitter Breakdown (Max)

10V

Frequency - Transition

7GHz

Noise Figure (dB Typ @ f)

1dB @ 1GHz

Gain

8.5dB

Power - Max

100mW

DC Current Gain (hFE) (Min) @ Ic, Vce

120 @ 20mA, 5V

Current - Collector (Ic) (Max)

70mA

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Package / Case

3-XFDFN

Supplier Device Package

3-ECSP1006
