E37F501CPN562MEE3M

Part NumberE37F501CPN562MEE3M

ManufacturerUnited Chemi-Con

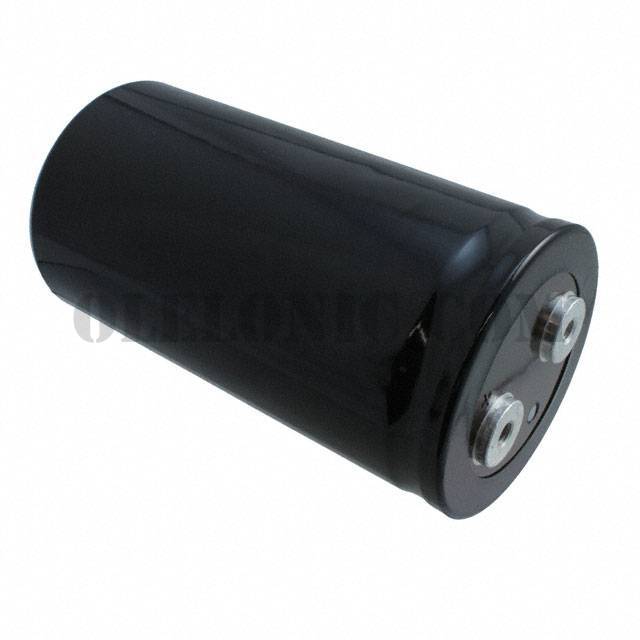

DescriptionCAP ALUM 5600UF 20% 500V SCREW

DatasheetU37F Series Bulletin

Package / CaseRadial, Can - Screw Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5600µF 500V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20mOhm @ 120Hz 5000 Hrs @ 85°C

To learn about the specification of E37F501CPN562MEE3M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add E37F501CPN562MEE3M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of E37F501CPN562MEE3M.
We are offering E37F501CPN562MEE3M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

E37F501CPN562MEE3M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	U37F Series Bulletin
Standard Package	16
Manufacturer	United Chemi-Con
Series	U37F
Packaging	Bulk
Part Status	Active
Capacitance	5600µF
Tolerance	±20%
Voltage - Rated	500V
ESR (Equivalent Series Resistance)	20mOhm @ 120Hz
Lifetime @ Temp.	5000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	17.1A @ 120Hz
Ripple Current @ High Frequency	24.111A @ 10kHz
Lead Spacing	1.252" (31.80mm)
Size / Dimension	3.000" Dia (76.20mm)
Height - Seated (Max)	5.669" (144.00mm)
Surface Mount Land Size	-
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
