DXTN07100BFG-7

DXTN07100BFG-7

Part NumberDXTN07100BFG-7

ManufacturerDiodes Incorporated

DescriptionPWR MID PERF TRANSISTOR POWERDI3

DatasheetDXTN07100BFG

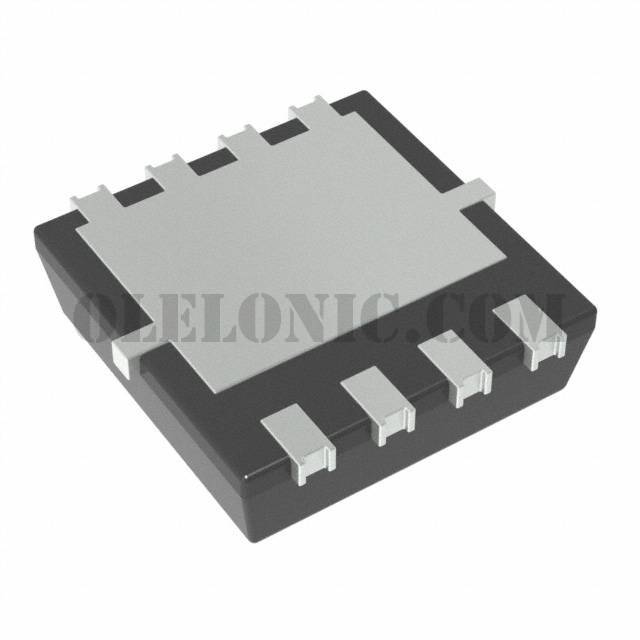

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 100V 2A 175MHz 900mW Surface Mount PowerDI3333-8

To learn about the specification of DXTN07100BFG-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DXTN07100BFG-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DXTN07100BFG-7.
We are offering DXTN07100BFG-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DXTN07100BFG-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	DXTN07100BFG
Standard Package	2000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	2A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	400mV @ 200mA, 2A
Current - Collector Cutoff (Max)	50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 500mA, 2V
Power - Max	900mW
Frequency - Transition	175MHz
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PowerDI3333-8
