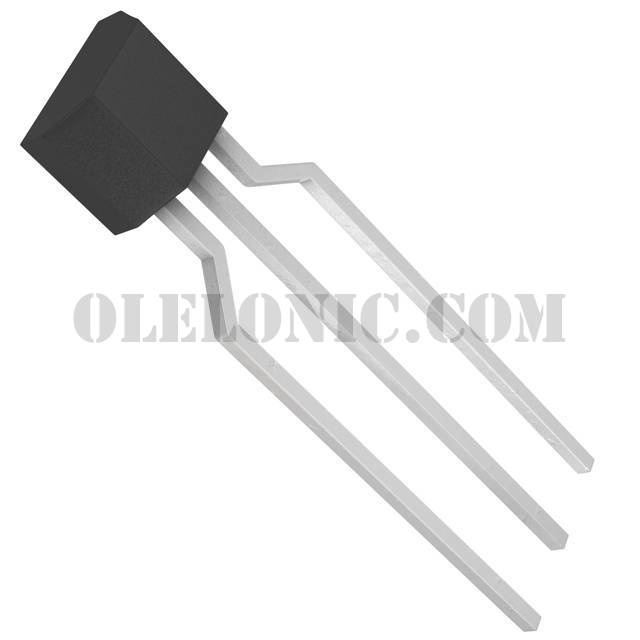

DTB113ESTP

Part NumberDTB113ESTP

ManufacturerRohm Semiconductor

DescriptionTRANS PREBIAS PNP 300MW SPT

DatasheetDTB113E(K,S)

Package / CaseSC-72 Formed Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50V 500mA 200MHz 300mW Through Hole SPT

To learn about the specification of DTB113ESTP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DTB113ESTP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DTB113ESTP.
We are offering DTB113ESTP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DTB113ESTP - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased

Datasheet

DTB113E(K,S)

Standard Package

Manufacturer

Rohm Semiconductor

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Transistor Type

PNP - Pre-Biased

Current - Collector (Ic) (Max)

500mA

Voltage - Collector Emitter Breakdown (Max)

50V

Resistor - Base (R1)

1 kOhms

Resistor - Emitter Base (R2)

1 kOhms

DC Current Gain (hFE) (Min) @ Ic, Vce

33 @ 50mA, 5V

Vce Saturation (Max) @ Ib, Ic

300mV @ 2.5mA, 50mA

Current - Collector Cutoff (Max)

500nA

Frequency - Transition

200MHz

Power - Max

300mW

Mounting Type

Through Hole

Package / Case

SC-72 Formed Leads

Supplier Device Package

SPT

Base Part Number

DTB113
