DSS5160FDB-7

Part NumberDSS5160FDB-7

ManufacturerDiodes Incorporated

DescriptionTRANS 2-PNP 1A 60V U-DFN2020-6

DatasheetDSS5160FDB

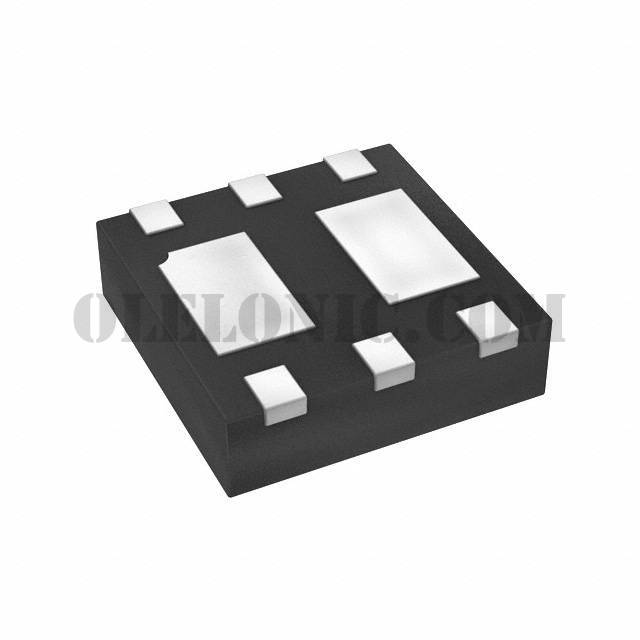

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 PNP (Dual) 60V 1A 65MHz 405mW Surface Mount U-DFN2020-6 (Type B)

To learn about the specification of DSS5160FDB-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSS5160FDB-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSS5160FDB-7.
We are offering DSS5160FDB-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSS5160FDB-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	DSS5160FDB
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	2 PNP (Dual)
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	550mV @ 50mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 500mA, 2V
Power - Max	405mW
Frequency - Transition	65MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UDFN Exposed Pad
Supplier Device Package	U-DFN2020-6 (Type B)
